Functie Producten

• 600mm vloer kabinet

  Functies & specificatie van vrijstaande kasten:

  Grootte : 42U

  Voorste glazen deur

  Dimensie :

  600mm (breedte) x800mm (diepte)

  600mm (breedte) x600mm (diepte)
• Wandmodellen 19 inch kasten

  Functies & specificatie van muur gemonteerd kasten:

  Grootte: 6/9/12/15/18U

  Dimensie : 600W

  600 mm (breedte) x600mm (diepte)

  600mm (breedte) x450mm (diepte)
• 800mm brede Floor kabinet

  Functies & specificatie van vrijstaande Kasten:

  Grootte: 42U

  Dimensie :

  800mm (breedte) x800mm (Diepte)



• 600mm vloer kabinet

  Functies & specificatie van vrijstaande kasten:

  Grootte : 42U

  Dimensie :

  600mm (breedte) x800mm (diepte)

• 2U Rack Mount MPO To LC 288 Core HD Patch Panel




  Ultrahigh Density MPO/MTP Patch Panel 2U 12 Modular 288 ports




  High  Density  Panel  is  specially to  accommodate  high  density cabling  in high  end  Data  Center  and  Telecommunication  central office  environment. The  shallow  depth  of  High  Density  Panel  makes  it  suitable  for  low  depth copper racking  systems  or  Telecommunication  ODFs.

  The 19’’  1U 5 modular  120 ports And 2U 12 modular 288 ports MPO  Panel  contains  factory  controlled  and  tested Modules  can  be  installed  in  it.MTP - LC  assembly  to  deliver  optical  perf­ormance  and  reliability.

  Application:

  l   Data communication applications

  l   Data Centre infrastructure

  l   Storage Area Network - Fibre Channel

  l   Emerging 40 and 100Gbps Protocols compatible

  Features:

  l   19"rack mount, the panel and modules are made of cold rolled steel sheet

  l   Modular in design with higher density, special mini module comes up to 24 LC or 12 SC adapter ports and switch to MTP/MPO connection.

  l   1U patch panel capacity come up to 120F fully loaded with 5 modules. And 2U capacity come up to 288F fully loaded with 12 modules, save more space for large data centers and reduce combined cost.

  l   Unique tool-free installation design for easy and fast assembly and installation.

  l   Factory pre- terminated module, plug and play on site, no need fiber splicing and cable wiring which saves labor cost.

  l   This system can also support application of optoelectronic hybrid with Standard RJ45 keystone jack, achieve the function of network distribution and cover a wider application.

  l   Front cable management function is convenient for managing cable and identifying link label.

  Specification:

  Item	1U	2U
  Dimensions (W x D x H)	483mm×335mm×1U	483mm×335mm×2U
  Storage Temperature	-20°C~+60°C
  Operating Temperature	-20°C~+55°C
  Relative Humidity	≤85%(+30°C)
  Air Pressure	70kPa~106kPa

  Ordering Information

  X	Product Description：	MPP2 - SP - B - 9005 - 2×12MTP/PC - LC/UPC - OM3 - 3MD - 2BP - 1U
  X	1 - Model	MPP2
  X	2 - Body Materials	SPCC(cold rolled steel sheet)
  X	3 - Painting Finish	B: powder coat matt finish
  X	4- Painting Color	RAL 9005 black
  X	5 - Patch cord Quantity	2×12 : 2pcs of 12F ; 1×24 : 1pc of 24F ; 1×12 : 1pc of 12F
  X	6 - Connector A	MPO/PC; MPO/APC; MTP/PC; MTP/APC
  X	7 - Connector B	LC/UPC; LC/APC; SC/UPC; SC/APC
  X	8 - Fiber Mode	G657A1; OM1; OM2; OM3; OM4
  	9 - Module Quantity	1MD; 2MD; 3MD; 4MD; 5MD; 6MD; 7MD; 8MD; 9MD; 10MD; 11MD; 12MD
  	10 - Baffle Quantity	0BP: w/o baffle; 1BP: with 1 baffle; 2BP: with 2 baffle; 3BP,4BP,etc
  	11 - Panel Height	1U; 2U
  	Note：1. MPP2-1U fully loaded with 5 modules, MPP2-2U fully loaded with 12 modules. 2. Baffles are used where modules are not installed. 3. Empty frame w/o Module Description:MPP2-SP-B-9005-EM-1U/2U (1U、2U are optional)

  MPO/MTP-LC Module

  Material	SPCC(cold rolled steel sheet)
  Color	Black
  Size	88W*133D*34Hmm
  (front)Adapter type	LC quad (w/o flange)×6Pcs
  (front)Adapter color	Aqua: OM3/OM4 ; Beige: OM1/OM2 Blue: SM-UPC ; Green: SM-APC
  (rear)Adapter type	MPO/MTP(Full flange/Opposed)
  (rear)Adapter color	Black
  Connector A	SM :LC-UPC,0.9mm or LC-APC,0.9mm MM:LC-UPC,0.9mm
  Connector B	SM : MPO/MTP(male)-APC MM: MPO/MTP(male)-PC
  Patch cord polarity	TypeA
  Weight	0.22kg




  Optical Performance

  Type	Wavelength	Module I.L. Max
  MTP-LC(MM)	850nm/1300nm	0.50dB
  MTP-LC(SM)	1310nm/1550nm	1.30dB
  MPO-LC(MM)	850nm/1300nm	0.75dB
  MPO-LC(SM)	1310nm/1550nm	1.50dB




  Ordering Information

  X	Product Description：	MPM2 - SP - B - 9005 - 1×12MTP/PC - SC/UPC - OM3 1 2 3 4 5 6 7 8
  X	1 - Model	MPM2
  X	2 - Body Materials	SPCC(cold rolled steel sheet)
  X	3 - Painting Finish	B: powder coat matt finish
  X	4- Painting Color	RAL 9005 black
  X	5 - Patch cord Quantity	2×12 : 2pcs of 12F ; 1×24 : 1pc of 24F
  X	6 - Connector A	MPO/PC; MPO/APC; MTP/PC; MTP/APC
  X	7 - Connector B	LC/UPC; LC/APC
  X	8 - Fiber Mode	G657A1; OM1; OM2; OM3; OM4

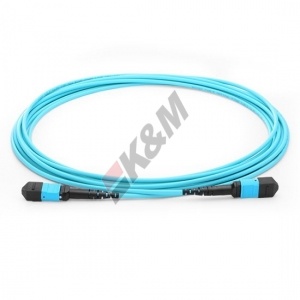

• OM3 MPO-SC/PC 12Core Fiber Optic MPO to LC Patch Trunk Cables
• vezeloptische trui 12 vezels om3 mpo vrouwelijk recht
• 12 kernen mtp-vezelmontagekabel

• Outdoor Energy Storage Cabinet

  Introduction

  The whole system is plug-and-play, easy to transport, install and maintain.lt consists of battery module,PCS, STS (optional), MPPT (optional), control system, fire control system, and temperature control system, monitoring system one-stop integration, through the synergy of the system components to achieve.

  lt adopts AC coupled micro grid structure, PCS, load, grid, and access to AC bus, and the corresponding control strategy is developed according to the actual case to ensure the safety of power supply.

  The battery cluster consists of 21 modules connected in series, and the whole battery system is controlled by BCM to monitor the cluster voltage and current in real time.

  The battery module consists of 10200 AhLiFePO4cells; distributed BMM control system with functions of collecting battery voltage, collecting battery temperature, and battery equalization to ensure the module works

  Effectively and safely







  PRODUCT FEATURES

  ⚫Adopt automotive grade high performance lithium iron phosphate (LFP) battery, safe and reliable.

  ⚫Intelligent temperature control to ensure optimal temperature environment and lower system power consumption.

  ⚫Real-time data backup.

  ⚫Automatic fire fighting system with good safety.

  ⚫Support parallel and off-grid switching function.

  ⚫One button start, automatic operation, support multiple parallel connection.

  ⚫Protection class IP55, suitable for outdoor use.

  ⚫Four layers of safety protection design, safe and reliable.

  ⚫Support remote viewing service.

  ◎Model	30Kw/100kWh	60Kw/147.8kWh
  ◎Battery parameters
  Cell Type	LFP-220Ah	LFP-220Ah
  Module Model	IP10S	IP10S
  Battery Cluster Configuration	1P150S（15Module）	IP210(21Module)
  System Configuration	1*1P150S	1*IP210S
  Battery Capacity（BOL）	100kWh	147.84kWh
  Battery voltage range	420V-540V	588V-756V
  ◎AC on-grid parameters
  Grid Type	3P4W	3P4W
  Rated charge/discharge power	30KW	60kW
  Rated grid voltage	AC400V	AC400V
  Rated grid frequency	50Hz	60Hz
  Frequency range	±5Hz	±5Hz
  Rated current	43A	86A
  Power Factor	1（Ahead）~1（Lag）	1（Ahead）~1（Lag）
  Output Harmonics	≤3%	≤3%
  ◎AC off-grid parameters
  Rated output power	30KW	60KW
  Rated output voltage	AC400V	AC400V
  Rated output frequency	50Hz	50Hz
  Rated current	43A	86A
  Voltage accuracy	1%	1%
  Frequency accuracy	0.2Hz	0.2Hz
  ◎General parameters
  Dimension (W*D*H)	1861*1835*1267mm	1861*1835*1267mm
  Weight	1950kg	2200kg
  IP Protection Rating	IP55（Battery room）IP53(Electrical room)	IP55（Battery room）IP53(Electrical room)
  Seismic Intensity Rating	8（IEC60980）	8（IEC60980）
  Anti-corrosion grade	C3	C3
  Operating temperature【1】	-20℃～50℃	-20℃～50℃
  Relative Humidity	0-95%（Non-condensing）	0-95%（Non-condensing）
  Working altitude【2】	＜2000m	＜2000m
  Cooling method	Battery section: air conditioning Power section: forced air cooling	Battery section: air conditioning Power section: forced air cooling
  Noise	≤75dB	≤75dB
  System efficiency	≥88%	≥88%
  Cycle life	5 years or more than 2000 times	5 years or more than 2000 times
  Fire Fighting System	Automatic fire extinguishing	Automatic fire extinguishing
  Fire extinguishing media	FM200	FM200
  Communication Interface	Ethernet	Ethernet
  Communication protocols	Modbus TCP/IP	Modbus TCP/IP
  Warranty	3 years	3 years
  ◎Photovoltaic side parameters (optional)
  Maximum input module power	30KW	60KW
  MPPT Voltage Range	200V-420V	200V-580V
  Number of MPPT paths	1	1
  Number of PV input channels	1	1
  Maximum input current	100A	100A

  ◎ Notes：

  【1】The system will be derated when the ambient temperature exceeds 45℃.

  【2】The system will be derated when the altitude is between 2000 and 3000m.

  ◎Standard Certification：

  【1】System: GB_T 36558, IEC 62933

  【2】PCS: GB_T 34120

  TYPICAL SYSTEM LAYOUTS




  ◎ Notes： STS are available as options.




  On and off-grid (seamless switching)
• VEZEL DISTRIBUTIE HUB-BUITEN (STRAAT KABINET) 576 Fiber

  KDM218-T1 is een soort ' single-sided FDH buiten kabinet; het wordt voornamelijk gebruikt voor de glasvezelkabel verbinding, distributie en beheer tussen elke vezel distributie-hubs, met name voor de toepassingen FTTH.
• VEZEL DISTRIBUTIE HUB-BUITEN (STRAAT KABINET) 144/288 Fiber

  KDM218-T2 is een soort ' single-sided FDH buiten kabinet; het wordt voornamelijk gebruikt voor de glasvezelkabel verbinding, distributie en beheer tussen elke vezel distributie-hubs, met name voor de toepassingen FTTH.
• ETSI Rack 21''

• Dome style fiber splices closure 144 cores

  The fiber splice closure is applicable to termination of branching downstream optical cable in PON optical communication network. Over FTTX network fiber splice closure is used for end A/B access of optical cable ，splicing of low-capacity single-fiber，lead-out and fixation of multi-fiber access cables



• Horizontal Fiber Optic Splice Closure 144 cores

  The fiber splice closure is applicable to termination of branching downstream optical cable in PON optical communication network。Over FTTX network，fiber splice closure is used for end A/B access of optical cable ，splicing of low-capacity single-fiber，lead-out and fixation of multi-fiber access cables
• toegang tot de sluiting van de fiber 288-kernen
• Fiber Optic Splice Dome Closure 144Core/PLC Splitter




• China FTTH box for 2LC Duplex adaptor

  K&M's Fiber Termination Box(FTB) is mounted to in&out side wall of building or pole to distribute and connect  optical cable for distribution of subscriber
• China FTTH box 24 cores with splitter

  Fiber Access Terminal (FAT) is mounted to in & out side wall of building or pole to distribute and connect optical cable for distribution of subscriber, the box integrates mechanical splicing, splicing and distribution of fiber and splitting in one, use for FTTH network
• Fiber Access Terminal Hub for deop cable

  The fiber access termination hub is able to hold up to 16-24 subscribers and 96splicing points as terminal. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

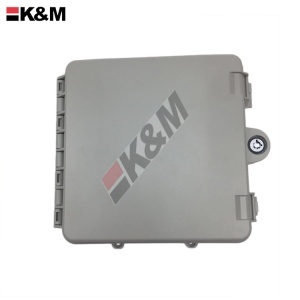

• FTTH 16 core Fiber Access Terminal

  Features

  • Indoor/Outdoor type
  • Nonmetallic material
  • Compacted wall mount type
  • Simple and clearly arranged incoming and outgoing cable management
  • Higher fiber count capacity box is available upon request
  • Easy maintenance ,easy access with front door
  • Support both mechanical and fusion splicing
  • Low cost solution with high protection for the terminated fibers
  • IP65 rated for outdoor applications
  • Customized design product is available upon request

  Applications

  • FTTX Systems
  • PON Networks
  • Fiber Optic Termination
  • CATV

  Specification

  • Wall Mounted termination box for indoor/outdoor use
  • Up to 16  Fiber capacity LC duplex(16Pcs) or 16 fiber SC Simplex
  • Available for SC Simplex Adaptors or LC duplex
  • Available install 1x16 Mini type PLC Splitters as required



• FTTH Fiber Access termination box 2Ports

  It is a user terminal for FTTH (Fiber To The Home) solution, with reasonable interior space design. It is used at homes or in work areas for single-core or double-core fibers and port output. It can fully meet the requirement for bending radius of fibers, protect inlet/outlet of fibers, provide safe protection for fiber cores and appropriate bending radius, allow storage of a small quantity of redundant fibers, and implement application of the FTTH system.



• FTTH 16 core Fiber Access Terminal

  Features

  • Indoor/Outdoor type
  • Nonmetallic material
  • Compacted wall mount type
  • Simple and clearly arranged incoming and outgoing cable management
  • Higher fiber count capacity box is available upon request
  • Easy maintenance ,easy access with front door
  • Support both mechanical and fusion splicing
  • Low cost solution with high protection for the terminated fibers
  • IP65 rated for outdoor applications
  • Customized design product is available upon request

    Applications

  • FTTX Systems
  • PON Networks
  • Fiber Optic Termination
  • CATV

   Specification

  • Wall Mounted termination box for indoor/outdoor use
  • Up to 16  Fiber capacity LC duplex(16Pcs) or 16 fiber SC Simplex
  • Available for SC Simplex Adaptors or LC duplex
  • Available install 1x16 Mini type PLC Splitters as required



• 32/64 core Fiber Access Terminal Modular PLC Splitter
• Fiber optic beëindiging vak 24 poorten

  K & M's Fiber beëindiging Box(FTB) is gemonteerd in & out zijwand van gebouw of paal te verspreiden en optische kabel voor distributie van abonnee

• 48 cores SC simplex Optical Fiber Patch Panel Slide in type 19'' 2U height
• 24 cores lc simplex patchpaneel voor optische vezels
• Fiber Optic Sliding type 144 ODF SCAPC modulaire type compleet met SCAPC adapter 144pecs enige, 5U, met toebehoren, bared vezel bescherming buis en cassettes van 24core 6 pecs, 19' & 21' / ETSI vaststelling van barckets

  Voorpaneel is transparant glazen deur, is het handig om te zien in, Label bestaat verwisselbare
  Rackmontage, 19 inch, Modulair, flexibele installatie, handige beheer en uit te breiden. Inlaat kabels zijn van rechts of links, en outlet kabels zijn aan de twee zijkanten van de voorzijde.
  Handige bediening en onderhoud
  Kwalitatief hoogwaardige legering aluminium behuizing, spuiten voor oppervlaktebehandeling, aangename verschijning en licht in gewicht
  Elke module voor maximaal 12 splicing en adapter.






• Fiber Optic Sliding type 144 ODF SC glijdende type compleet met SC/PC adapter 144pecs enige, 4U, met toebehoren, bared vezel bescherming buis en cassettes van 24core 6 pecs, 19' & 21' / ETSI vaststelling van barckets

• LC /PC to LC/PC OM3 DUPLEX Fiber Optic Patch Cord 3M

  Bend insensitive fiber optic patch cord is widely used in FTTH. The fiber is not sensitive to stress and bending. Singlemode bend insensitive fibers include G657A1, G657A2, G657B2, and G657B3.

  Construction

  A fiber optic patch cord is constructed from a core with a high refractive index, surrounded by a coating with a low refractive index, that is strengthened by aramid yarns and surrounded by a protective jacket. Transparency of the core permits transmission of optic signals with little loss over great distances. The coating's low refractive index reflects light back into the core, minimizing signal loss. The protective aramid yarns and outer jacket minimizes physical damage to the core and coating.






• LC /PC to LC/PC om3 4 cores Fiber Optic Patch Cord 5M

  Bend insensitive fiber optic patch cord is widely used in FTTH. The fiber is not sensitive to stress and bending. Singlemode bend insensitive fibers include G657A1, G657A2, G657B2, and G657B3.

  Construction

  A fiber optic patch cord is constructed from a core with a high refractive index, surrounded by a coating with a low refractive index, that is strengthened by aramid yarns and surrounded by a protective jacket. Transparency of the core permits transmission of optic signals with little loss over great distances. The coating's low refractive index reflects light back into the core, minimizing signal loss. The protective aramid yarns and outer jacket minimizes physical damage to the core and coating.



• PC van de FC aan FC PC Duplex SM/multimodus Patch kabel

  Een fiber optic patch kabel is een optische glasvezelkabel aan weerszijden afgetopt met connectoren waarmee u hem snel en gemakkelijk aansluiten CATV, een optische schakelaar of andere telecommunicatieapparatuur. Een dikke laag van bescherming wordt gebruikt om verbinding te maken met de optische zender, ontvanger en de klemmenkast. Dit staat bekend als "interconnect-stijl bekabeling"

• OS1 OS2 ventilator uit Enhanced patch kabel

  Fan uit Enhanced stuk zijn een aantal "best in class" singlemode patch snoeren dienst van de hoogste kwaliteit componenten, productieprocessen en testmethoden.

• 2x32 LC/APC LGX Splitter box




  Mini plug-in PLC type splitter is its small version with a compact design. It is usually installed in the wall mount FTTH box for fiber optic signal distribution.



• SC/APC PLC Splitter 1:16 box type 3.0mm with numbers pass 3D test
• high quality 2:32 LC/APC PLC Splitter with 3D test
• 2XN splitter paneel 19''

• Simplex 1.6mm to 3.0mm singlemode multimode indoor fiber optic cable
• High strength kevlar yarn member Duplex zipcord cable
• Losse buis Stranding kabel/GYTY53

  KDM losse buis familie van glasvezelkabels is ontworpen voor buiten en binnen/buiten gebruik als de netwerk-backbone of het nu voor luchtfoto geselde of ondergrondse toepassingen. Afhankelijk van de milieu- en prestatie criteria heeft KDM een scala van opties van de jas te weerstaan zelfs de zwaarste petrochemische of koude klimaat posities. Ontwerpen zijn beschikbaar met gel gevulde of gel-vrije, kleurgecodeerde buffer buizen. Meest voorkomende zijn de kabels van de Non-Armored losse buis waar de S-Z strandde buizen zijn opgenomen in de configuratie van een enkele of dubbele jasje. De standaard jas materiaal is polyethyleen, waarmee een robuuste, duurzame afwerking, terwijl andere jas opties met inbegrip van lage rook nul halogeen (LSZH) beschikbaar zijn voor toepassingen waarbij naleving van strengere milieunormen. De familie Non-Armored losse buis is een all-diëlektrische constructie wat betekent dat het bevat geen metalen onderdelen, dus geen verlijmen of aarding is vereist.
• Gepantserde + 2 stalen draden Optic Outdoor GYTW-glasvezelkabel
